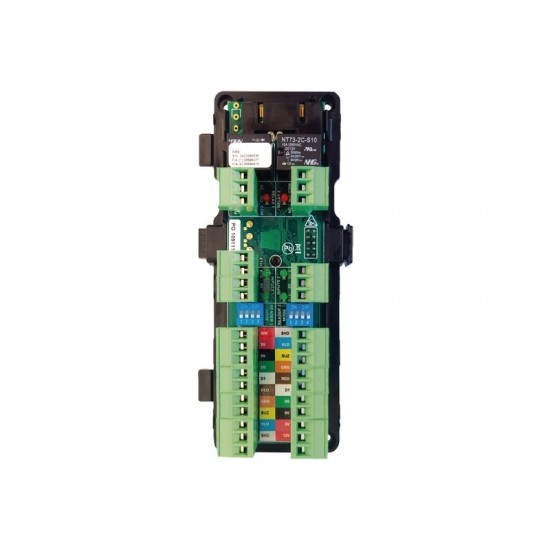

Samsung Hanwha Access Controller Wiegand module

About Samsung Hanwha Access Controller Wiegand module

A device that acts as a high-frequency solution to increase security, privacy, portability, data confidentiality and strong authentication-provides state-of-the-art mutual authentication encryption and data encryption for further protection. you can find Samsung Hanwha Access Controller Wiegand module at digital world technology in Dubai.

Specification:

• Dimensions : 6.1” W x 4.8” H x 1.5” D (154.9 mm x 122.5 mm x 37.1 mm)
• Housing Material : UL94 polycarbonate
• Audio / Visual Indicators : Two LEDs on RJ-45 port for network; beeper for boot and tamper
• Operating Temperature : 32° to 122° F (0° to 50° C)
• Communication Ports Ethernet : (10/100), Hi-O CANbus, Wiegand or Clock-and-Data
• Certifications : UL294 (US) Listed Component, CSA 205 (Canada), FCC Class A (US)
• DC Input : (MAX) @ PoE 14.4W (300mA @ 48VDC)
• DC Input : (MAX) @ AUX +12VDC : 18W (1500mA @ 12VDC)
• DC Input : @ PoE 9.6W
• DC Input : @ AUX +12VDC 14.4W
• Hi-O Device on CANbus : 9.6W (400mA @ 24VDC)
• Hi-O Device on CANbus : 9.6W (400mA @ 24VDC)
• Wiegand / C&D Reader : 7.1W (580mA @ 12.25VDC)
• Hi-O Device :on CANbus 14.4W (1200mA @ 12VDC)
• Wiegand / C&D Reader 3.9W : (320mA @ 12.25VDC)
• Hi-O Device on : CANbus 28.8W (1200mA @ 24VDC)
• Wiegand / C&D Reader : 7.3W (600mA @ 12.25VDC)
