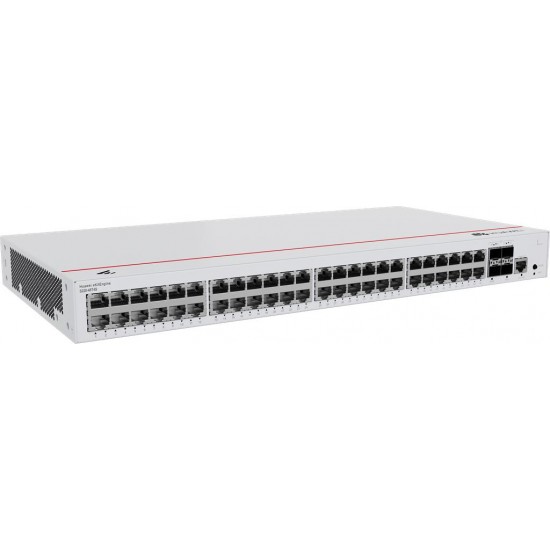

Huawei Switch S220-48T4S

Huawei Switch S220-48T4S
Huawei Switch S220-48T4S
-14 %
Huawei Switch S220-48T4S
Huawei Switch S220-48T4S
Huawei Switch S220-48T4S
Based on 0 reviews. - Write a review
396.57$
460.00$
  • Stock: In Stock
  • Model: S220-48T4S
  • Weight: 250.00g
  • SKU: 836905524972
Huawei Huawei
572 Product Views
Add to Cart
Add to Wish List Compare this Product

Buy More Take More Discount

Order Total0 - 2000 USD
2001 - 5000 USD
5001 - 10000 USD
10000 - 15000 USD
Discount %0% Discount
2% Discount
4% Discount
6% Discount


ItemSpecification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)]90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]1 U
Chassis materialMetal
Weight without packaging [kg(lb)]2.71 kg (5.97 lb)
Weight with packaging [kg(lb)]3.59 kg (7.91 lb)
Typical power consumption [W]36.15 W
Typical heat dissipation [BTU/hour]123.35 BTU/hour
Maximum power consumption [W]43.3 W
Maximum heat dissipation [BTU/hour]147.74 BTU/hour
Static power consumption [W]18.8 W
MTBF [years]40.61 years
MTTR [hours]2 hours
Availability> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]46.6 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]34.6 dB(A)
Number of card slots0
Number of power slots0
Number of fans modules1
Uplink ports4 x GE SFP ports
Downlink ports48 x 10/100/1000BASE-T ports
Redundant power supplyNot supported
Long-term operating temperature [°C(°F)]-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Devices cannot start when the temperature is lower than 0°C (32°F).

The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used.

The device does not support dying gasp when the ambient temperature is higher than 40°C (104°F).

Storage temperature [°C(°F)]–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]0-5000 m (0-16404 ft.)
Power supply modeAC built-in
Rated input voltage [V]AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V]AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A]1.6 A
Memory2 GB
Flash memoryPhysical space: 1 GB
Console portRJ45
Eth Management portNot supported
USBNot supported
RTCNot supported
RPS inputNot supported
Service port surge protection [kV]Common mode: ±7 kV
Power supply surge protection [kV]Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)IP20
Types of fansBuilt-in
Heat dissipation modeAir cooling for heat dissipation, intelligent fan speed adjustment
Airflow directionAir intake from left and air exhaust from right
PoENot supported
Certification

EMC certification

Safety certification

Manufacturing certification
