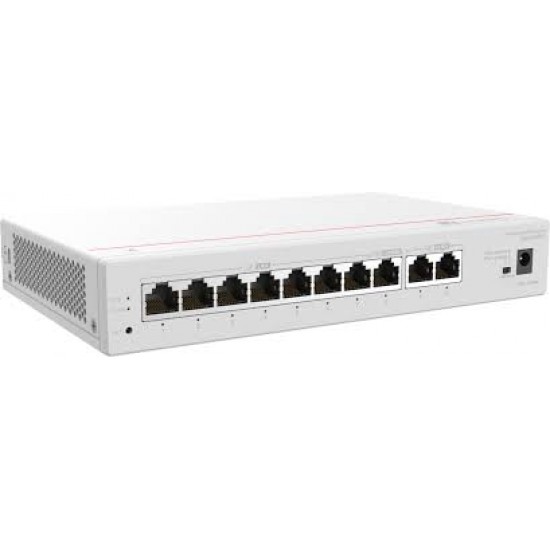

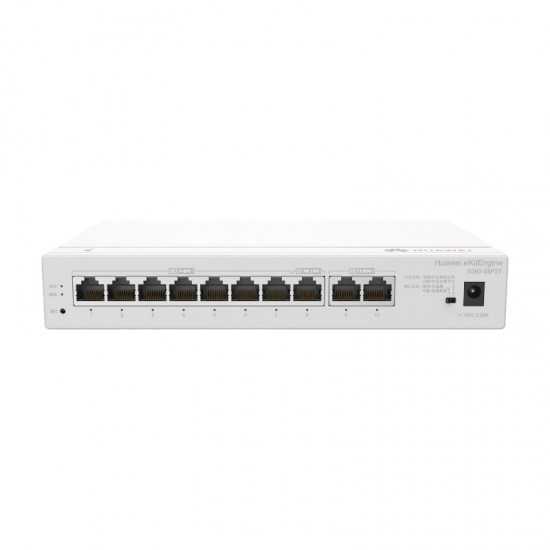

Huawei Gateway S380-S8P2T

Huawei Gateway S380-S8P2T
Huawei Gateway S380-S8P2T
-10 %
Huawei Gateway S380-S8P2T
Huawei Gateway S380-S8P2T
Huawei Gateway S380-S8P2T
438.24$
488.00$
  • Stock: In Stock
  • Model: S380-S8P2T
  • Weight: 500.00g
  • SKU: 6901443425679
128 Product Views
ItemSpecification
Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)

Dimensions with packaging (H x W x D) [mm(in.)]150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.)
Chassis height [U]0.8 U
Chassis materialMetal
Weight without packaging [kg(lb)]1.5 kg (3.31 lb)
Weight with packaging [kg(lb)]1.8 kg (3.97 lb)
Typical power consumption [W]12.4 W
Typical heat dissipation [BTU/hour]42.3 BTU/hour
Maximum power consumption [W]145.8 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour]497.5 BTU/hour
Static power consumption [W]7.53 W
MTBF [years]65.36 years
MTTR [hours]2 hours
Availability> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]Noise-free (no fans), < 20
Number of card slots0
Number of power slots0
Number of fans modules0
Uplink ports2 x GE WAN
Downlink ports8 x GE LAN (124 W PoE+)
Redundant power supplyNot supported
Long-term operating temperature [°C(°F)]0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]0-5000 m (0-16404 ft.)
Power supply modePower adapter
Rated input voltage [V]

Power adapter input: 100–240 V AC; 50/60 Hz

Power adapter output: 56 V DC

Input voltage range [V]Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A]2.68 A
MemoryDDR4: 512 MB
Flash memoryNAND Flash: 512 MB
Storage-
Console portNot supported
Eth Management portLAN port
USBNot supported
RTCNot supported
RPS inputNot supported
Service port surge protection [kV]Common mode: ±4 kV
Power supply surge protection [kV]Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof)IP20
Types of fansNone
Heat dissipation modeNatural heat dissipation
Airflow direction-
PoESupported
Certification

EMC certification

Safety certification

Manufacturing certification
