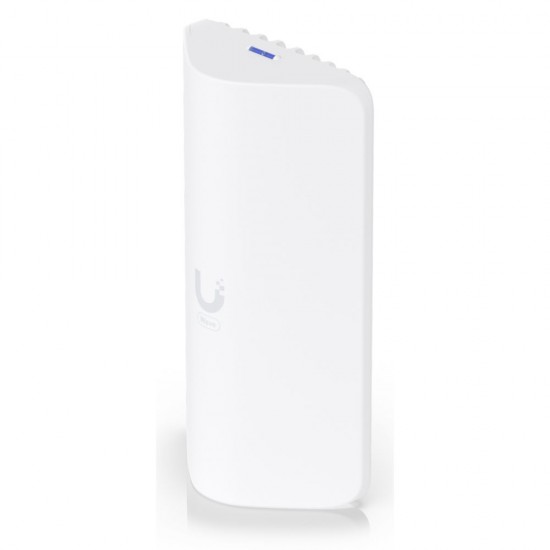

ubiquiti wave ap gen2 Wave-AP-Gen2

ubiquiti wave ap gen2 Wave-AP-Gen2
New -13 %
ubiquiti wave ap gen2 Wave-AP-Gen2
Based on 0 reviews. - Write a review
630.00$
720.00$
  • Stock: In Stock
  • Model: Wave-AP-Gen2
  • Weight: 2,500.00g
  • Dimensions: 30.00in x 45.00in x 30.00in
Ubiquiti Ubiquiti
320 Product Views
Add to Cart
Add to Wish List Compare this Product

Buy More Take More Discount

Order Total0 - 2000 USD
2001 - 5000 USD
5001 - 10000 USD
10000 - 15000 USD
Discount %0% Discount
2% Discount
4% Discount
6% Discount


60 GHz + 5 GHz multipoint base station featuring 90-degree sectoral coverage, 31-client capacity, 2.7 Gbps symmetrical speed, and antenna connectors for 5 GHz range extension.


Dimensions
158.3 x 286.8 x 100.2 mm (6.2 x 11.3 x 3.9")
Weight
1.5 kg (3.3 lb)
Enclosure Material
UV stabilized polycarbonate, aluminum alloy
Pole Mount Diameter
25.4 to 60 mm (1 to 2.4")
Wind Loading
109.8 N at 200 km/h (25 lbf at 125 mph)
Weatherproofing
IPX6


Processor
Quad-core ARM® Cortex®-A53 at 1.4 GHz
Memory
512 MB
Networking Interface
(1) 2.5 GbE RJ45 port (1) 10G SFP+ port
Max. Power Consumption
24W
Power Method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range
44–54V DC 22–27V DC
Power Supply
48V DC, 0.65A 2.5 GbE PoE adapter (Included)
GPS
✓
Buttons
(1) Factory reset
LEDs
Power
Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
Ethernet
Flashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected
GPS
Blue: receiving at least (4) GPS satellite signal
Ambient Operating Temperature
-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
FCC, IC, CE


Operating Modes
PtMP access point
Ubiquiti Specific Features
Discovery Protocol
✓
Services
UISP
✓
Ping Watchdog
✓
NTP Client
✓
SNMP
✓
Tools
Cable Test
✓
Wave AI
✓
Wave Technology
✓
Utilities
Antenna Alignment
✓
Ping
✓
Site Survey
✓
Speed Test
✓
Traceroute
✓
Network
Bridge Mode
Application Requirements
UISP
Version 2.4.205 and later


Total Throughput
5.4 Gbps
Supported Clients
31
Max. Range
Connecting to a Wave Pro: up to 6 km Connecting to a Wave Long-Range: up to 6 km Connecting to a Wave Nano: up to 4 km Connecting to a Wave Pico: up to 0.9 km
Encryption
WPA2-PSK (AES)


Operating Frequency
Worldwide
57–71 GHz
Channel Bandwidth
2160, 1080, 540 MHz
Operating Channels
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
Modulation
16QAM, QPSK
Antenna Gain
20 dBi
Polarization
Vertically-Linear
Beamwidth
Azimuth: 3 dB 90° Elevation: 3 dB 7°
Electrical Downtilt
0°


WiFi Standard
802.11ax (WiFi 6)
Operating Frequency
US/CA
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz
Worldwide
5150 - 5875 MHz
Channel Bandwidth
20, 40, 80 MHz
Modulation
BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna Gain
13 dBi
Polarization
Dual-Linear
Beamwidth
Azimuth: 6 dB 95° Elevation: 6 dB 25°
Cross-Pol Isolation
18 dB
Electrical Downtilt
0°
