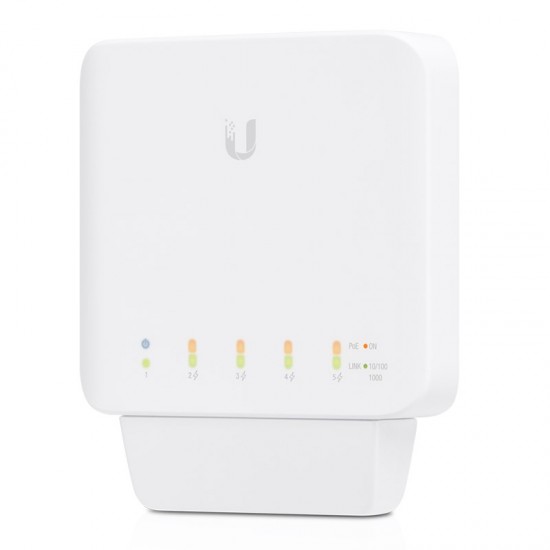

Ubiquiti UniFi Switch Flex USW-Flex

5-Port managed PoE switch with (1) 802.3at/bt (PoE+/PoE++) input port and (4) 802.3af (PoE) Gigabit Ethernet ports

Build and expand your network with the UniFi® Switch, part of the UniFi Enterprise System. The UniFi Switch, model USW-Flex, is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers 5 RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

The UniFi Switch Flex features a single PoE In port for power and four PoE ports that provide up to 15W PoE output to power a UniFi access point or other PoE devices. With 802.3bt rated PoE switches (USW-Pro-48-PoE, USW-Pro-24-PoE, US-XG-6POE, and USW-Industrial switches, sold separately) as power source, USW-Flex supports maximum 46W PoE output budget. It has weatherproof housing and offers versatile mounting options.

Managed and configured by the UniFi Controller or UniFi Mobile app, the UniFi Switch Flex offers basic Layer 2 switching protocols and features. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features using a graphical user interface from anywhere.

Managed by UniFi Network Controller version: 5.10.3 or higher

USW-Flex
Weight     230 g
(8.11 oz)
Networking Interfaces     (5) 10/100/1000 Mbps RJ45 Ports
Management Interface     Ethernet In-Band
PoE Out (Ports 2-5)     802.3af (Pins 1, 2+; 3, 6-)
Max Power Consumption
(Excluding PoE Output)     5W
Max PoE Wattage Per Port     15.4W
Total PoE Power Budget
Powered by 802.3af
Powered by 802.3at
Powered by 802.3bt
Powered by PoE Adapter
(Enabled in Controller)
8W
20W
46W
46W
Voltage Range
802.3af
802.3at/bt
44 - 57V
50 - 57V
LEDs
System
RJ45 Data Ports
Status
PoE; Link/Speed/Activity
ESD/EMP Protection     ± 16kV Air, ± 16kV Contact
Operating Temperature
46W PoE Output
25W PoE Output
-40 to 55° C (-40 to 131° F)
-40 to 65° C (-40 to 149° F)
Operating Humidity     5 to 95% Noncondensing
Certifications     CE, FCC, IC
Power Method (Port 1)
PoE Type
802.3af/at (Pins 1, 2+; 3, 6-)
802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
50V/60W PoE Adapter*    Recommended PoE Source
USW-24-PoE (sold separately)
USW-Pro-24-PoE (sold separately)
PoE Injector, POE-50-60W-WH or POE-50-60W (sold separately)
USW-Flex-Utility 60W PoE Adapter
Dimensions     118.5 x 63 x 34.7 mm
(4.66 x 2.48 x 1.36")
Weight     206 g
(7.27 oz)
Output Voltage     54V, 1.11A
Rated Voltage     100-240VAC
Input Current     1.5A (Max.)
Efficiency     > 86%
Output Ripple     200mVpp
Line Regulation     < 1%
Load Regulation     < 3%
4-Pair Powering     Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-
Operating Temperature     -20 to 60 ̊ C (-4 to 140 ̊ F)
Storage Temperature     -30 to 70 ̊ C (-22 to 158 ̊ F)
Operating Humidity     5 to 90%, Noncondensing
Surge Immunity     4kV Difference and Common Mode
