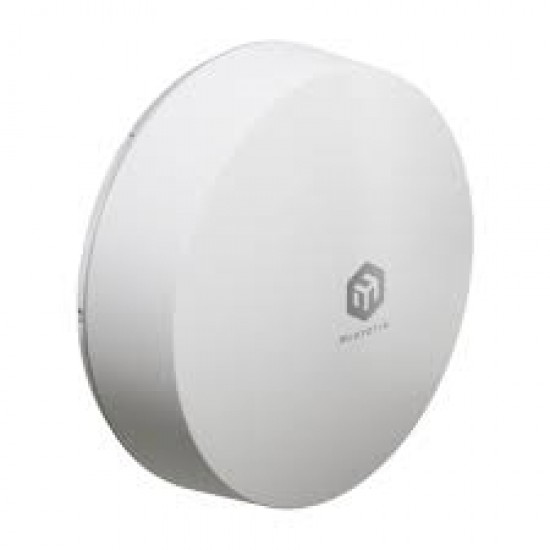

Mikrotik ATL 5G R16

ATL 5G R16

Our first outdoor 5G device with built-in eSIM support, powerful directional antennas, and a cutting-edge Release 16 modem – ideal for rural, urban, and IoT deployments. With Gigabit Ethernet, PoE-in, and instant MikroTik Connectivity out of the box, it’s the smart, rugged choice for fast and flexible internet anywhere. IP66 certified.

Specifications
  • Product code ATLGM&RG520F-EU
  • Architecture ARM 64bit
  • CPU 88F3720
  • CPU core count 2
  • CPU nominal frequency 800 MHz
  • CPU Threads count 2
  • RouterOS license 3
  • Operating System RouterOS v7
  • Size of RAM 512 MB
  • Storage size 32 MB
  • Storage type FLASH
  • MTBF Approximately 200'000 hours at 25C
  • Tested ambient temperature -40°C to 70°C


Powering
  • Number of DC inputs 1 (PoE-IN)
  • Max power consumption 10 W
  • Max power consumption without attachments 10 W
  • PoE in 802.3af/at
  • Cooling type Passive
  • PoE in input Voltage 12-56 V


Mobile
  • 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
  • 3G bands 1 (2100MHz)
    5 (850MHz)
    8 (900MHz)
  • LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
  • MIMO DL 4x4
  • LTE FDD bands 20 (800MHz)
    28 (700MHz)
    3 (1800MHz)
    5 (850MHz)
    7 (2600MHz)
    8 (900 MHz)
    1 (2100MHz)
    32 (1500 MHz)
  • LTE TDD bands 40 (2300MHz)
    38 (2600MHz)
    41 (2500MHz)
    42 (3500MHz)
    43 (3700 MHz)
  • 5G NSA FDD bands 1 (2100 MHz)
    3 (1800 MHz)
    5 (850 MHz)
    7 (2600 MHz)
    8 (900 MHz)
    20 (800 MHz)
    28 (700 MHz)
  • 5G NSA TDD bands 40 (2300 MHz)
    41 (2500 MHz)
    77 (3700 MHz)
    78 (3500 MHz)
    76 (1500 MHz)
    38 (2600 MHz)
    75 (1500 MHz)
  • 5G SA FDD bands 1 (2100 MHz)
    3 (1800 MHz)
    5 (850 MHz)
    7 (2600 MHz)
    8 (900 MHz)
    20 (800 MHz)
    28 (700 MHz)
  • 5G SA TDD bands 38 (2600 MHz)
    40 (2300 MHz)
    41 (2500 MHz)
    75 (1500 MHz)
    76 (1500 MHz)
    77 (3700 MHz)
    78 (3500 MHz)
  • TAC 86945405


Ethernet
  • 10/100/1000 Ethernet ports 1
  • Number of 1G Ethernet ports with Reverse PoE (PoE-in) 1


Peripherals
  • Number of SIM slots 1 Modem (Micro SIM)
  • Number of M.2 slots 1


Other
  • Mode button Yes
  • eSIM Yes


Certification & Approvals
  • Certification CE, EAC, ROHS
  • IP 66
