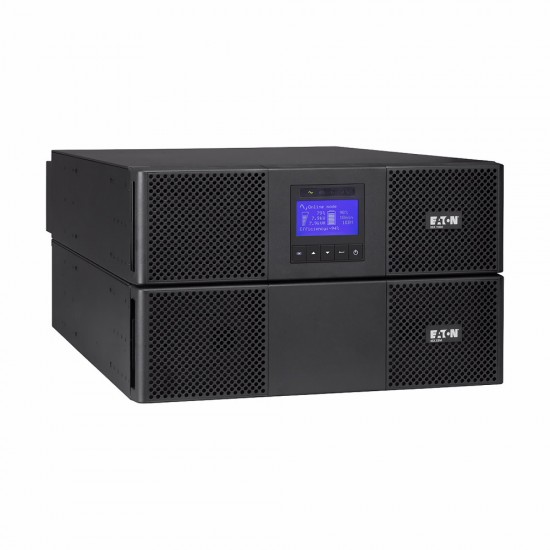

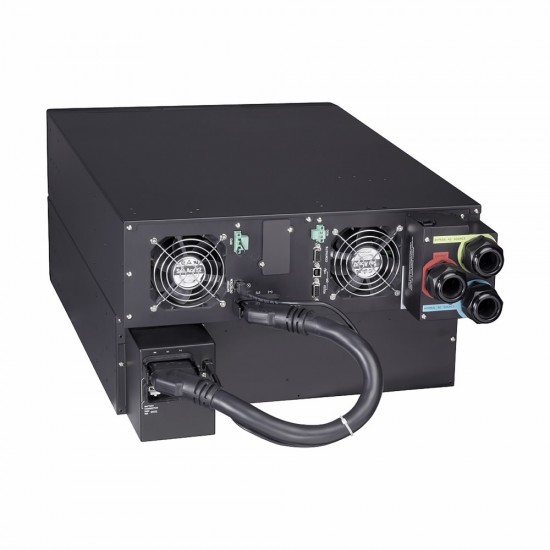

Eaton 9PX 11000I RT6U Rack UPS

SECONDARY FREQUENCY - MAX
60 Hz
OUTPUT WAVEFORM
Sine wave
MAX NUMBER OF BATTERY PACKS
12 (supercharger required for more than 6 EBM)
WATTAGE
10 kW
OUTPUT POWER FACTOR
0.9
FORM FACTOR
Rack/tower
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
2
INCLUDES NETWORK CARD
No
INPUT CONNECTION
Hardwired/fixed connection
INPUT VOLTAGE - MIN
100 V
OUTPUT VOLTAGE - MAX
250 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
BATTERY REPLACEMENT
Hot-swappable battery modules
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
95
NUMBER OF OUTPUTS HARDWIRED
1
SPECIAL FEATURES
Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
Provides more real power (watts) to protect more equipment with a 0.9 power factor
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Meter energy consumption (at the UPS level)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
Long backup time with up to 12 optional EBM
Cable locking system
CONSTRUCTION TYPE
482.6 mm (19 inch) device
OUTPUT VOLTAGE - MIN
200 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
Yes
OUTPUT VOLTAGE RANGE
200/208/220/230/240/250 V +/- 1%
TOPOLOGY
Online/Double-conversion
BTU RATING
Online: 2047
EFFICIENCY (ECO-MODE)
98
BACK-UP TIME
5.5 min
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240/250V)
INPUT POWER FACTOR
>.99
INPUT FREQUENCY RANGE
40-70 Hz
INTERNAL BYPASS
Yes
INPUT VOLTAGE - MAX
276 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units
AUTO SHUTDOWN FUNCTION
Yes
VA RATING
11 kVA
POTENTIAL FREE SWITCH CONTACT
Yes
RECEPTACLE
Hardwired
PHASE (INPUT)
1
PACKAGE CONTENTS
Power Module
Extended battery module (EBM)
(2) brackets for 19’ mounting
(2) Rack-mounting kit
USB cable
Serial cable
Battery cable with comms for automatic battery cabinet recognition
(2) Supports for tower mounting
Link plate
Safety instructions
Quickstart guide
NOISE LEVEL
<50 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
USER INTERFACE
Multilingual graphical LCD display
BATTERY QUANTITY
20
RACK SIZE
6U
VOLTAGE
230V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Dry contacts (4 outputs, relay, DB9)
RELATIVE HUMIDITY
0-95% non-condensing
RACK MOUNTING KIT
Yes
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
2 min
TYPE OF INTERFACE
Other
PRIMARY FREQUENCY - MIN
40 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240/250V)
